[BUILD THREAD] Boolean21's Realacc X210 - First time building a racing drone

Poisoned by Master Chai and bought this together with him during the 20% flash sale deal on banggood. Pretty value for money! Less than USD100 with free shipping. :D

Had build the DJI Flamewheel F450 aerial quad few years back and this is the first time building a racing drone.

I still remember during those days, I love big quads and always wanted a 650 sized quad someday...
Years passed and now, I'm loving mini quads and micro quads! I love the 65mm micro quad! :D

Ok, back to the Realacc x210 quad. We were looking out for something different for our next build and came across this x210 kit on banggood. So, yeah, master chai poisoned me and I poisoned him and ended up, both of us ordered this kit together. :D

Here's some photos of the parts.....
Parts list will be at the end of the post.


The base is 4mm thick... should be pretty strong to withstand my noob crashes... :D


The 2300KV motors

SPRacing F3 flight controller

Hardware for the frame

Quite a simple build... thanks to the photos reference sent to me by master chai. :D

Didn't use the stock Power Distribution Board (PDB) but used this PDB with built in OSD recommended by master chai.

The kit didn't come with VTX amd Camera, so ordered this cheap VTX for the build.

Assembled the frame to see how it looks like...

First step, I chose to mount the motors first.... so that I can position everything in place before cutting and soldering the wires...

Mounted the PDB as well....

Trimmed the ESC power cables...

and soldered them onto the PDB...

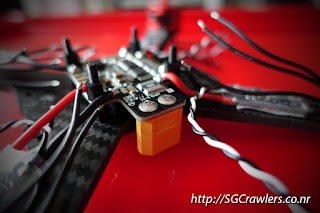

followed by soldering up the XT60 connectors and the other wires....

Was enjoying the soldering and forgot to take the rest of the photos when soldering the wires to the Flight Controller... ooops.... :D

Here's the completed build...


Still pending the installation of the RX before I can bring it for a test flight. :D

Thanks for looking!
Join in the fun and Keep RC-ing!

Parts List
Realacc X210 4mm Frame w/ F3 6 DOF Racerstar BR2205 2300KV Motor RS20A V2 Blheli_S 5X4X3 Prop - https://goo.gl/DJcRqY
Matek LED Tail light WS2512B with Loud Buzzer Dual Modes for FPV Racer Multicopters - https://goo.gl/xKxBkw
Foxeer XAT600M HS1177 600TVL CCD 2.8MM IR Mini FPV Camera IR Blocked 5-22v with Bracket - https://goo.gl/SycfUx
Eachine TS5828L Micro 5.8G 600mW 40CH Mini FPV Transmitter with Digital Display Boscam - https://goo.gl/IsZmZ0
Realacc / Matek HUBOSD ECO X Type w/STOSD8 Current Sensor 5V 12V Dual BEC PDB with XT60 Plug - https://goo.gl/Jj73cu
Aomway 5.8GHz FPV 4 Leaf Clover AV Transmission RHCP Antenna 1 Pair Blue Red - https://goo.gl/hOjWdK
