some updates today... midnight oil started burning at 11pm+...
cut out the window panels... drilled some holes at the curved section and dremel-ed the straights...
Enlarge this image Click to see fullsize
Enlarge this image Click to see fullsize

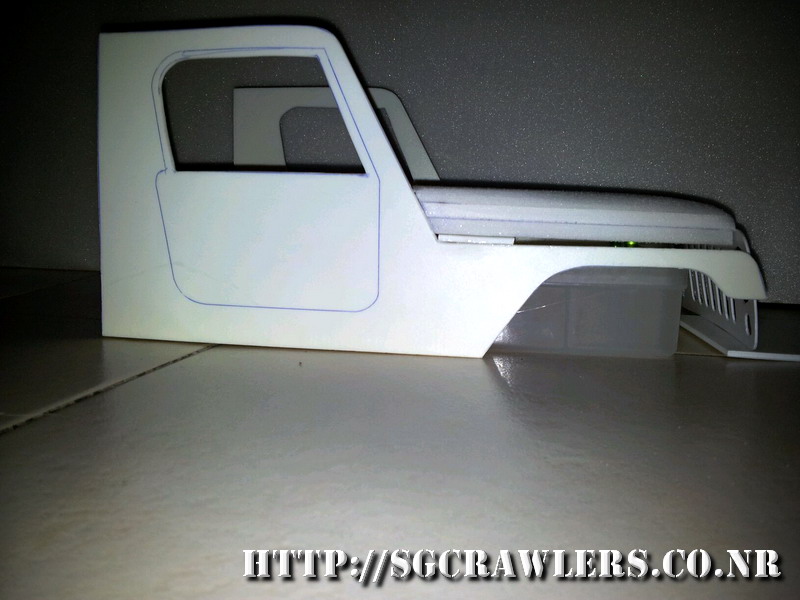

made a bonnet out of foam boards... laminated 3 pieces together to form the thickness... then sanded it.... mocked up on the panels to see how it looked....
Enlarge this image Click to see fullsize
Enlarge this image Click to see fullsize

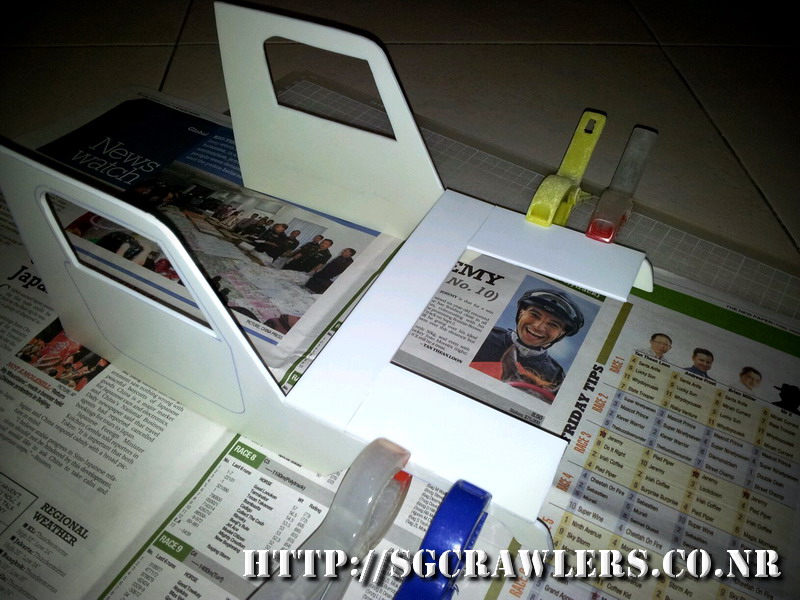

sticking the side of the trucks in position...
Enlarge this image Click to see fullsize

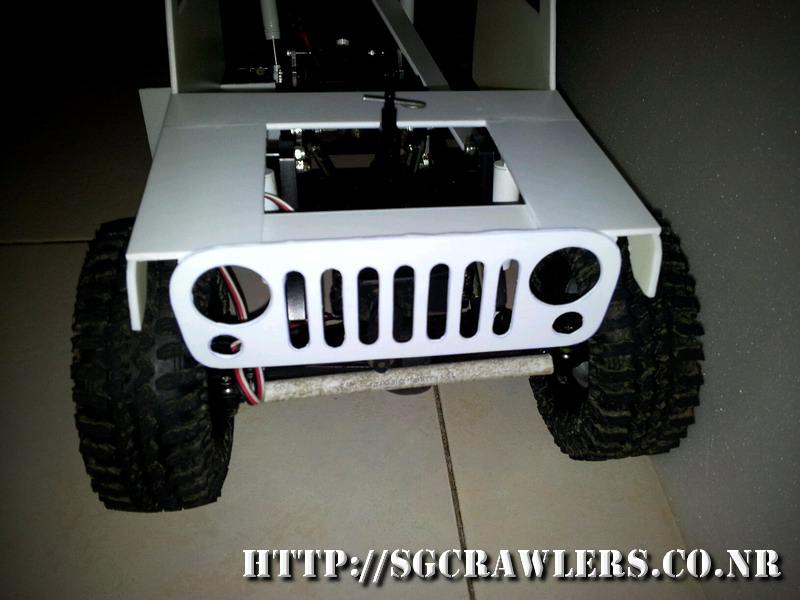

followed by attaching the front grill...
Enlarge this image Click to see fullsize

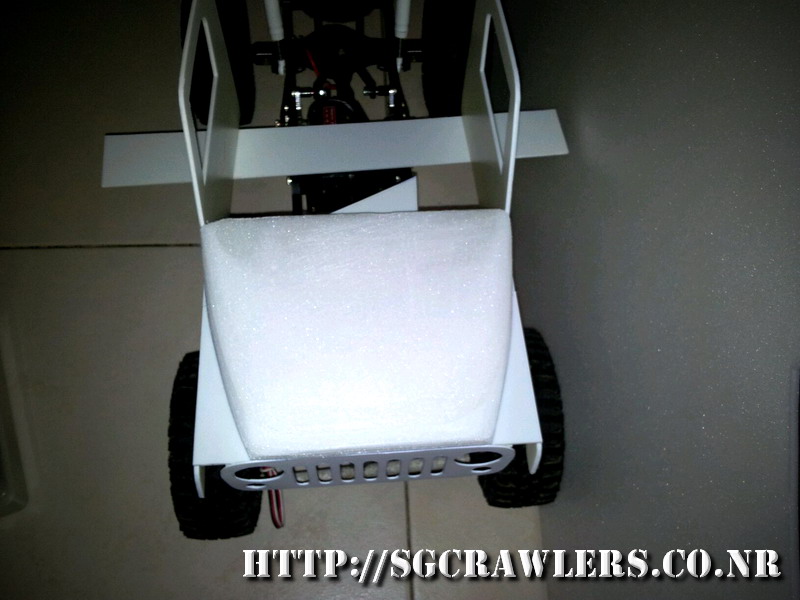

further sanded the bonnet and see how it looked....
Enlarge this image Click to see fullsize

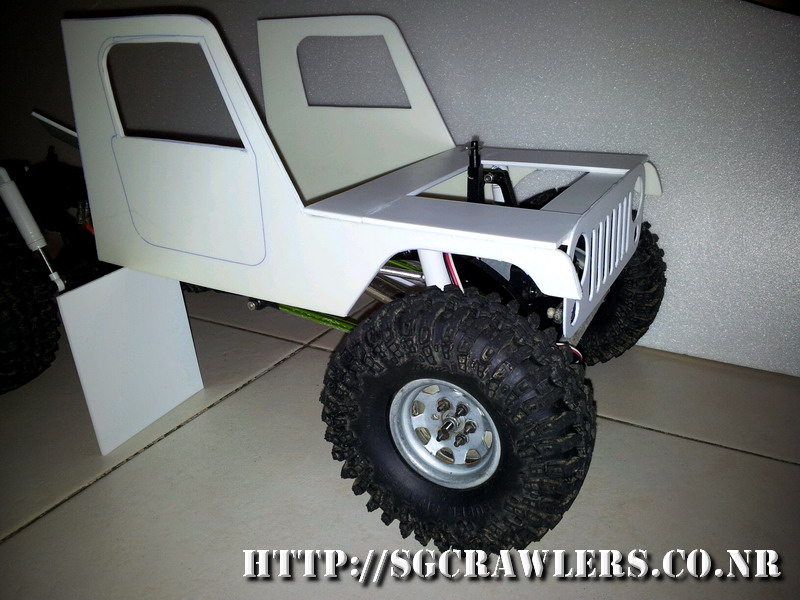

mocked it up on a spare chassis to make sure the size is ok....
will likely not be using this chassis and wheel set... still undecided whether want to put t-rex 60 or axial axles under it..
Enlarge this image Click to see fullsize
Enlarge this image Click to see fullsize
Enlarge this image Click to see fullsize
Enlarge this image Click to see fullsize
thats all for this session....
still long way ahead... foam needs to be reinforced, and more styrene works... etc etc....
thanks for looking.
